Kev tiv thaiv overspeed: Thaum lub elevator ceev tshaj qhov chaw pib (xws li 115% ntawm qhov ntsuas ceev), tus tswv xeev ceev yuav ua rau lub tsheb nres kom tsis txhob ntog lossis tsoo rau saum.
Kev tswj tsis tau nres: Thaum muaj xwm txheej ceev xws li of elevator traction tshuab tsis ua hauj lwm lossis hluav taws xob tsis ua haujlwm, tus tswv xeev ceev siv cov cuab yeej siv tshuab lossis hluav taws xob los sib npaug ntawm cov load thiab tiv thaiv lub tsheb kom tsis txhob txav mus ntxiv vim muaj inertia.
Txuas kev ruaj ntseg nres: Tus txwv ceev thiab nres kev nyab xeeb tsim ib qho kev kaw - voj tiv thaiv. Kev nyab xeeb nres yog rub los ntawm cov hlua hlau hlau los yog lub teeb liab sensor kom clamp cov kev taw qhia kev tsheb ciav hlau, yog li ua tiav qhov yuam kev.
Kev saib xyuas xwm txheej: Qee qhov kev txwv ceev ceev yuav muaj peev xwm ua haujlwm tau cov ntaub ntawv los pab cov chaw saib xyuas lub elevator hauv kev ntsuas kev ua haujlwm.
|
Specification |
Kev teeb tsa |
|
|
V Tsawg dua lossis sib npaug 1.75 |
Standard npog |
220V electromagnet |
|
V Tsawg dua lossis sib npaug 1.75 |
Standard npog |
24V electromagnet |
Technical Specifications
· Rated Ceev (V): 0.25 - 1.75 m/s
· Sheave Pitch Diameter: Φ240mm
· Hlau hlua txoj kab uas hla: Φ8 mm, Φ6 mm
· Lifting Force: 800 - 1500 N
· Siv Lifting Height Range:
Tensioning Force 250 N: H Tsawg dua lossis sib npaug li 50 m
Tensioning Force 350 N: 50 m Tsawg dua lossis sib npaug rau H Tsawg dua lossis sib npaug rau 80 m
· Yeem Accessories: Standard Protective Cover, Base Plate

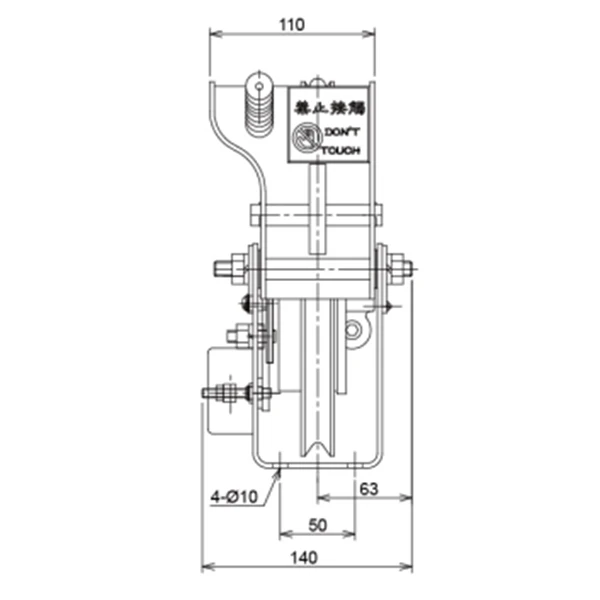

Installation dimension
